Concealed Fastening Components

Concealed Fastening Components

This system offers large flexibility for installing TRESPA® METEON® panels, the use of adjustable brackets allow for precise joints and an optimal façade grid.

TRESPA® METEON® panels with a minimum thickness of 3/8 inch* (10 mm) may be fixed invisibly on an aluminium sub-frame comprising horizontal rails and hanging brackets fixed with expansion anchors to the back of the panel.

000-004 Rail Anchor
$1.00

000-004 Rail Anchor

QuickShipPanels

Required to install 200-000 Aluminum Rails

$1.00

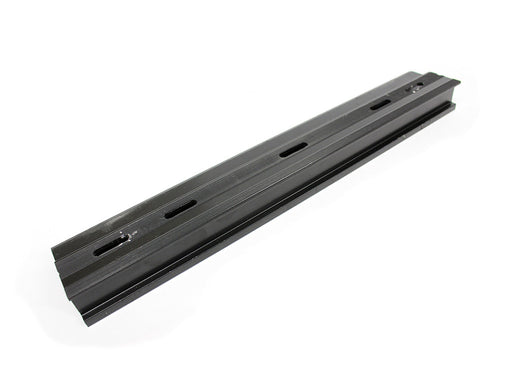

200-000 TS200 Aluminum Rail - 12' Length
$43.00

200-000 TS200 Aluminum Rail - 12' Length

QuickShipPanels

Available in 12' lengths. Requires 000-004 Rail Anchors for installation.

$43.00
200-003 Adjustable Bracket
$7.00

200-003 Adjustable Bracket

QuickShipPanels

Requires two rivets (200-005) for installation

$7.00
200-004 Fixed Bracket
$5.00

200-004 Fixed Bracket

QuickShipPanels

Requires two rivets (200-005) for installation

$5.00

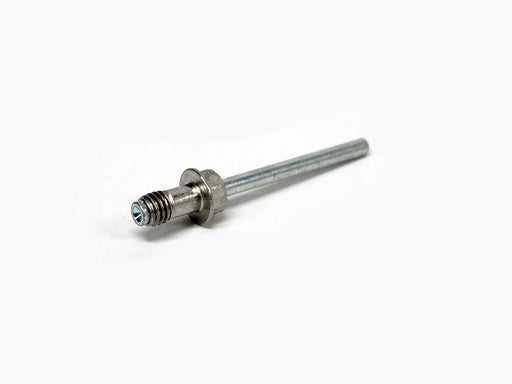

200-005 TU-S Fastener Panel Rivet 6 x 11
$1.00

200-005 TU-S Fastener Panel Rivet 6 x 11

QuickShipPanels

Two rivets required for every Fixed and Adjustable bracket

$1.00

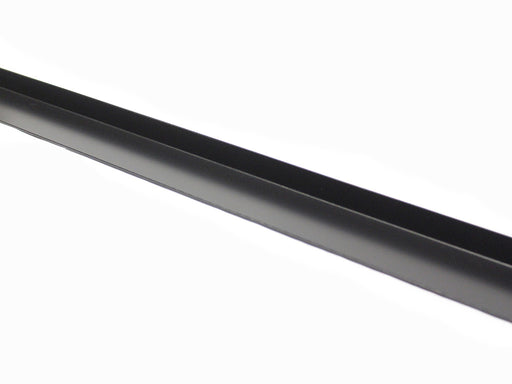

210-000 2-1/4" System closure strip - 10' Length
$29.00

210-000 2-1/4" System closure strip - 10' Length

QuickShipPanels

Available in 10' lengths. Requires 000-006 Clip Anchors for installation.

$29.00

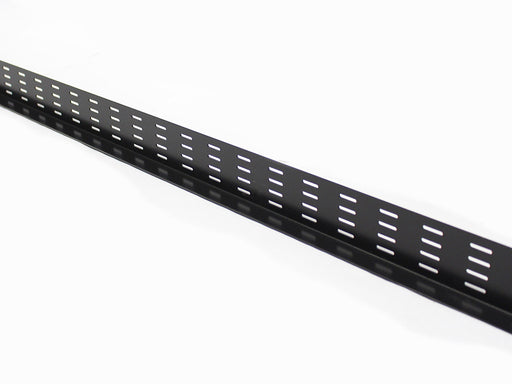

210-001 2-1/4" Vent Screen - 10' Length
$34.00

210-001 2-1/4" Vent Screen - 10' Length

QuickShipPanels

Available in 10' lengths. Requires 000-006 Clip Anchors for installation.

$34.00

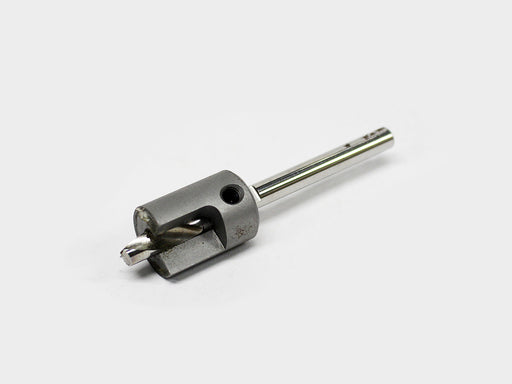

921688 Adjustable Depth Drill Bit - 1/4"
$109.00

921688 Adjustable Depth Drill Bit - 1/4"

QuickShipPanels

Flat bottoming drill bit with adjustable stop

$109.00
